RUGGED DISPLAY CONSOLES

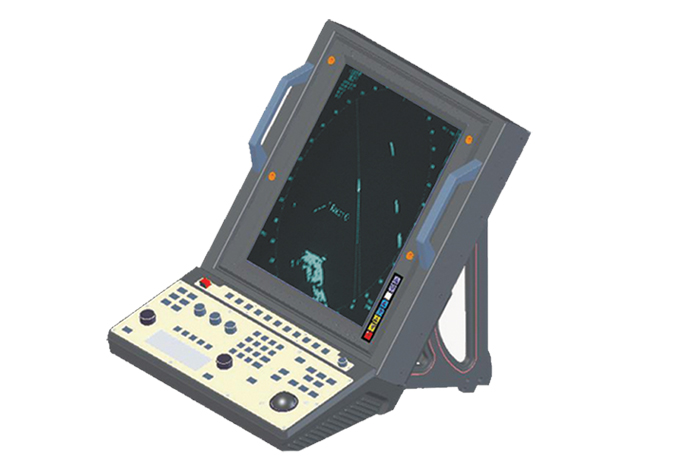

NDC 201 DOWNLOAD

SPECIFICATIONS :
»  20.1” LCD based console with on screen display function keys on the front panel.
»  Display Orientation: Portrait (3:4).
»  Slimmer, Lighter and Excellent aesthetics.
»  Mounting holes on Pedestal as well as Desktop versions for easier retrofit application in field maintenance
»  Custom built Key Board.
»  Meets MIL-STD 810 Environmental test Standards & MIL-461C/D EMI Standard.
»  Operating Temperature : 0 ~ 55oC
»  Operating Humidity : 95% RH non-Condensing @40oC
»  Altitude :15,000 feet
»  Vibration: 7 to 300 Hz ?0.2mm Constant Displacement (or) ? 30mm/sec. Constant velocity
   which ever is less in X, Y , & Z axis with a sweep rate of on octave per minute.
»  EMI/EMC: As per MIL 461C.

APPLICATIONS
»  Wide Range of Applications as Color Tactical Display Console for ARPA/ATA Radar
